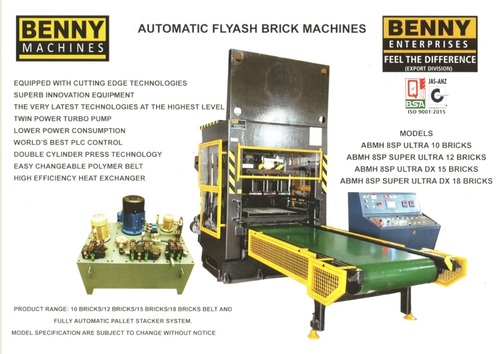

Fly Ash Brick Making Machine

Fly Ash Brick Making Machine
Fly Ash Brick Making Machine
Product Code : ABMH - 8SPDX
Brand Name : BENNY ENTERPRISES
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Specifications
  • Product Type
  • Fly Ash Brick Making Machine
  • General Use
  • Brick Making Machine
  • Material
  • Fly Ash
  • Type
  • Clay Brick Making Machine
  • Computerized
  • No
  • Automatic
  • Yes
  • Feature
  • Low Weight, Fire Resistant, Heat Insulation, High Durability
  • Color
  • green,yellow and red
Product Description

Fly Ash Brick Making Machine

Since 1975, our firm has been instrumental in manufacturing, exporting and supplying Fly Ash Brick Making Machine. This machine is widely used in construction sector for making fly ash brick in different designs, sizes and shapes. The offered machine is manufactured using quality-approved components and contemporary techniques under the stern guidance of our deft professionals. Beside this, our clients can purchase this Fly Ash Brick Making Machine in several technical specifications at reasonable prices.

Key Features:

  • Auto-pressure control system
  • Built-in cooling system with superior pressure distribution
  • Easy to install & operate
  • European conveyor gear box
  • Heavy-duty jig-welded body
  • High functionality, easy operation and high productivity
  • Hi-tech design with world-class electrical and hydraulic circuit
  • Industrial pressing plat
  • Less maintenance required
  •  More than  5% power saving
  • Safety grills with hardened grade steel mold

Technical  Specification :

Fly Ash Brick Making Machine Technical Specifications


Capacity 1000-2000 Bricks/Hour
Power(Motor) 10HP or 15 HP
Load 30 Tons
Brick Size 230 X 110 X75 mm
Max Size 230 X 200 X100 mm
System Hydraulic, Automatic, Rotary Table, Three Stationed PLC Controlled
Table Rotation Hydraulic Motor (Automatic)
Mix Feed Conveyor (or) Manual)
Brick Removal Manual )
Raw Material Fly ash, Iron Oxide Lime Sludge, Quarry Waste Etc.,)
Weight 2500 Kgs(Approximately


Flyash Brick Making Machine - MEW PL 1500 (Technical Specifications


Production Capacity for 8 hours or shift 12000-15000 Bricks
Bricks per stroke 8 Bricks
Power(Motor) Machine 15Hp, Mixer 20 HP Conveyor 2Hp  Total = 37 HP
Load 60 Tons
Brick Size 230 X 110 X75 mm
Pan Mixer 500 kg capacity with manual operation or 350 kg pan mixer available
Conveyor 20 feet long with 2 hp motors
Pallet trucks 500 kg capacity with manual operation
Trolley 150-250 kg loading capacity
Weight 4-5 Tons


Fly Ash Brick Machine Mew 3000 Technical Specifications


Production Capacity for 8 hours or shift 2400-3000 Bricks 1hour
Bricks per stroke 15 Bricks
Power(Motor) Machine 15Hp, Mixer 20 HP Conveyor 2Hp Total = 37 HP
Load 150 Tons
Brick Size 230 X 110 X75 mm
Pan Mixer 500 kg capacity 20 hp motor
Conveyor 20 feet long with 2 hp motors
Pallet trucks 500 kg capacity with manual operation
Trolley 150-250 kg loading capacity
Weight 8 Tons

Total Power

67 H.P

Hydraulic Motor

15 H.P

Agitator Motor

5 H.P

Hydraulic Oil Cooling Motor

1 H.P

Brick Out Conveyer Motor

3 H.P

Main Mix Conveyer Motor

3 H.P

Double Pan Mixing Motor

20x20 H.P

  • 15 Bricks in 16 seconds
  • 3600 Bricks 1 hour.
  • 28, 800 bricks shift
  • brick size 230 x 110 x75
  • Other Sizes .230 x150 x 80-8nos. 230 x 230 x104-4nos

Trade Information
  • Payment Terms
  • Cash Against Delivery (CAD), Cheque
  • Supply Ability
  • as per client demads Per Day
  • Delivery Time
  • 10 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • as per customer requirement
  • Main Export Market(s)
  • Asia, Central America, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • BSA INTERNATIONAL CERTIFIED
