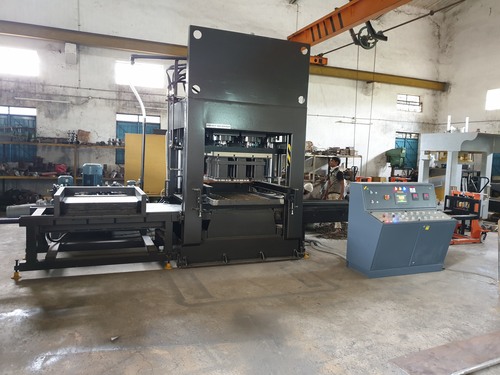

    18 Bricks Fly Ash Making Machine

    18 Bricks Fly Ash Making Machine
    18 Bricks Fly Ash Making Machine
    Send Inquiry
    Product Code : ABMH-8SP Ultra DX
    Brand Name : BENNY ENTERPRISES
    Price And Quantity
    • Minimum Order Quantity
    • 1 Unit
    Product Specifications
    • Material
    • Fly Ash
    • Capacity
    • 40000 bricks Kg/hr
    • Weight (kg)
    • 3 Kilograms (kg)
    • Type
    • Other
    • Computerized
    • Yes
    • Automatic
    • Yes
    • PLC Control
    • Yes
    • Method
    • Hydraulic Pressure
    • Maximum Pressure
    • 500 Bar
    • Machine Power
    • 67 Kilowatt (kW)
    • Dimension(L*W*H)
    • 4500*2500*3050 Millimeter (mm)
    • Pallet Size
    • 900*800*25 (changable)
    • Number of Bricks
    • 18
    • Feature
    • High Durability, Anti Seismic, Heat Insulation, Fire Resistant, Low Weight
    • Color
    • Industrial Hammertone Dark Gray Finishing
    • Warranty
    • 12 months
    Product Description

    Our industry experience of utmost four decades has assisted our firm to provide the best quality 18 Bricks Fly Ash Brick Making Machine. Available in varied technical specifications, the offered plant is suitable for the production of fly ash brick in different sizes, designs and shapes for construction applications. This plant is assembled with the utilization of quality-approved components and pioneering techniques under the stern guidance of our adroit professionals. Further, our clients can avail this 18 Bricks Fly Ash Brick Making Machine at the most competitive price.

    Key Features:

    • Sturdy designed for ling lasting life
    • Simple and easy installation
    • Power efficient design
    • Uproar free functionality
    • Complete safety with innovative designs and high technology
    • High-end electrical and hydraulic circuit
    • Substantial body welded using JIG machines and pressing plat
    • Modern cooling system, protection grills and conveyor gear box imported from Italy
    • Economical up to 15%
    • High class of steel mould and unmanned pressure control system

    Technical Specification:- MODEL - ABMH 8 SP SUPER ULTRA DELUXE BELT SYSTEM HEAVY PRESSING.

    Hydraulic Motor 20 H.P./15 KW
    Brick Eject Motor 3 H.P./2.25 KW
    Heat Exchanger
    1 H.P./0.75 KW
    Conveyor System
    3 H.P./2.25 KW
    Pan Mixer Machine  20 H.P./15 KW
    System
    Hydraulic Free Fill
    Dimension H-2800 x W-1500 x L-3000
    Weight
    10500 KG
    Fully PLC Control

    Sliding Rod OD 63 EN8 Grinded Hard Chromed
    Sliding Bush Steel Casting
    No: of Cylinders 7 No's
    Main Cylinder
    OD 200 x 350 x 160
    Side Cylinder  OD 80 x 50 x 350
    Ejector Cylinder
    OD 50 x 35 x 1100
    Max Pressure 220+220=440 BAR
    Hydraulic Pump
    Turbo Twin System
    Cycle Time
    15 Seconds
    Trade Information
    • FOB Port
    • Coimbatore
    • Payment Terms
    • Cash in Advance (CID)
    • Supply Ability
    • 2 Unit Per Month
    • Delivery Time
    • 60 Days
    • Packaging Details
    • Wooden
    • Main Export Market(s)
    • Asia
    • Main Domestic Market
    • All India
    • Certifications
    • ISO certified, Quality performance
